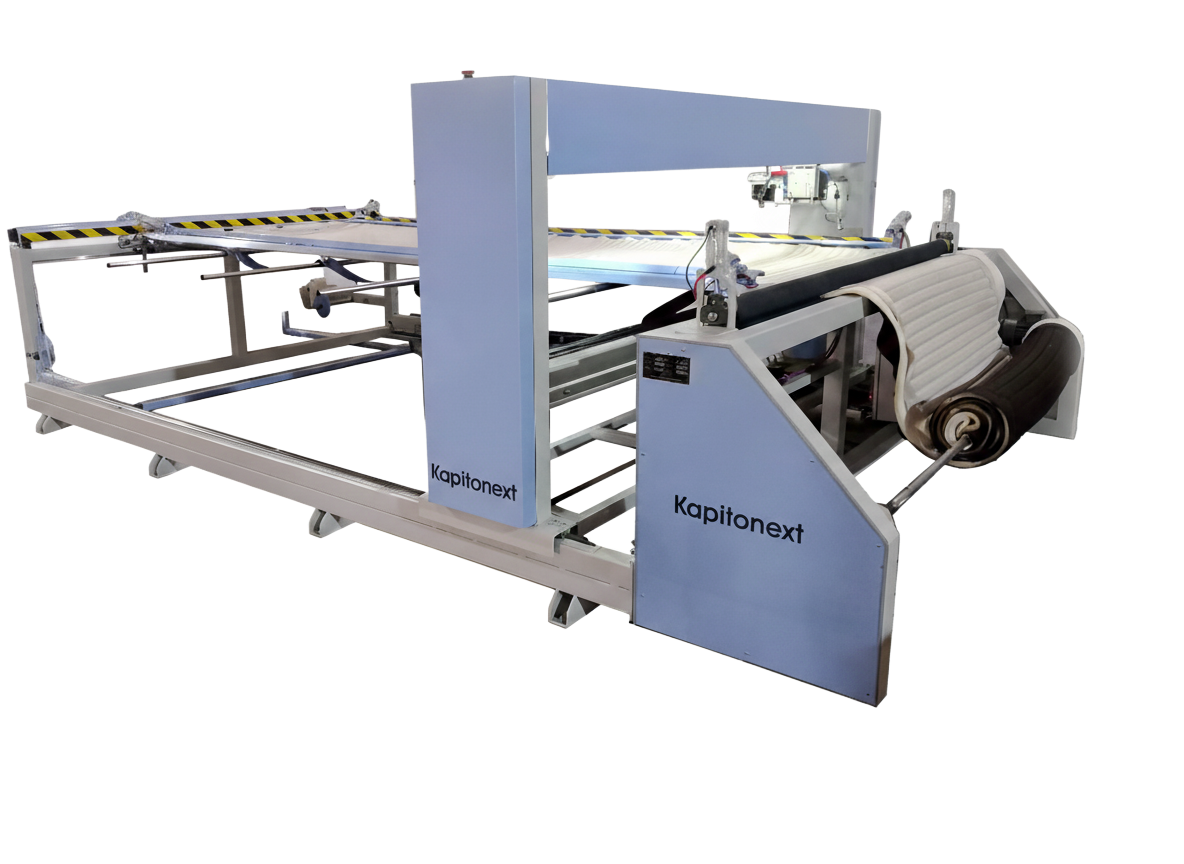

NX200
Single Head Quilting Machine
| Max. Sewing Speed | 3500 rpm |
| Number of Sewing Heads | 1 |
| Max. Material Thickness | 8 cm |
| Stitch Length | 1 - 8 mm |
| Sewing Head | Durkopp Adler 867 |
| Stitch Type | Lock Stitch |
| Bobbin Type | Oversized Dürkopp Adler XXL |
| Recommended Needle Size | 110 – 160 |
| Max. Sewing Speed (3500 Rpm, 8mm stitch length) | 18 m/min |
| Max. Jump Speed | 30 m/min |
| Number of Ready Patterns (Unlimited Pattern Addition) | 3000 |
| Automatic Top and Bottom Thread Trimming | Included |
| Automatic Fabric Pulling System | Included |
| Stop with Thread Break Sensor | Included |
| Automatic Fabric Winding System | Included |
| Automatic motorized hook system for fabric width | Included |
| Needle cooling | Included |
| Number of Material Feed Rolls (Optionally Expandable) | 5 (x 2: for double roll mode) |
| Average Total Weight | 2000 kg |
| Remote Support via Internet with Kapitonext Service | Included |
| Machine Footprint (Including Material Feeding) | 3200 mm X 6500 mm |
| Electrical Project (Schematics) | Included |
| Program Backups | Included |
| Pattern Conversion Program | Included |
| 4-axis 0.75KW servo motion control | Included |
| 3 units 0.37 kW AC motor + 1 unit 0.75 kW AC drive | Included |
